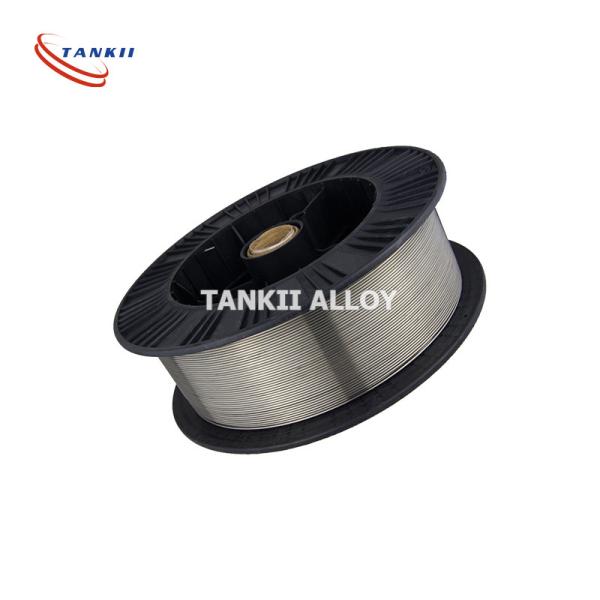

1.6mm NiCr6015 NiCr60/15 Thermal Spray Nickel Alloy Wire Bright Annealed
Nickel chromium alloy with iron resistance electrothermal high resistivity, surface body well. At high
temperature and high intensity, and a good performance and processing may welding nature widely used
metallurgical, electrical, mechanical components and electrical manufacturing industries for doing heat
resistance material.
Typical applications include metal-sheathed tubular elements used in hot plates, grills, toaster ovens, storage heaters, etc
1.About Nichrome NiCr6015 wire
Nichrome alloy NiCr6015 characterized by high resistivity, good oxidation resistance ,good form stability and good ductility and excellent weldability. It is suitable for use at temperatures up to 1150°C.
2.NiCr6015 has many other Grade name:
Ni60Cr15,Chromel C, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,Electroloy, Nichrome, Alloy C, Alloy 675, WS-675, Stablohm 675,NiCrC
3.Chemical Composition of NiCr6015
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max |
| 0.08 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 15.0~18.0 | 55.0~61.0 | Max 0.50 | Bal. | - |
4.Typical Mechanical properties of Nicr6015
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 370 | 730 | 35 |
5.Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.011 | 1.024 | 1.038 | 1.052 | 1.064 | 1.069 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.073 | 1.078 | 1.088 | 1.095 | 1.109 | - | -
|
Applications:
—For vacuum coating
—For making valves grid, inner components of vacuum valves
—Components insides the electron tubes
—For making lead, supporting wire
—For Electronic components
—For battery production
—Strong base of the filter
—manufacture of connections for heating elements as well as heating spirals in spark-plugs
| Item | Inconel 625 | Ni95Al5 | 45CT | Monel 400 | Monel K500 | HC-276 | Cr20Ni80 |
| C | ≤0.05 | ≤0.02 | 0.01-0.1 | ≤0.04 | ≤0.25 | ≤0.02 | ≤0.08 |
| Mn | ≤0.4 | ≤0.2 | ≤0.2 | 2.5-3.5 | ≤1.5 | ≤1.0 | ≤0.06 |
| Fe | ≤1.0 | N/A | ≤0.5 | ≤1.0 | ≤1.0 | 4.0-7.0 | N/A |
| P | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.02 |
| S | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 |
| Si | ≤0.15 | ≤0.2 | ≤0.2 | ≤0.15 | ≤0.5 | ≤0.08 | 0.75-1.6 |
| Cu | N/A | N/A | N/A | rest | 27-33 | N/A | N/A |
| Ni | rest | rest | rest | 65-67 | rest | rest | rest |
| Co | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Al | ≤0.4 | 4-5 | N/A | ≤0.5 | 2.3-3.15 | N/A | N/A |
| Ti | ≤0.4 | 0.4-1 | 0.3-1 | 2.0-3 | 0.35-0.85 | N/A | N/A |
| Cr | 21.5-23 | ≤0.2 | 42-46 | N/A | N/A | 14.5-16 | 20-23 |
| Nb | 3.5-4.15 | N/A | N/A | N/A | N/A | N/A | ≤1.0 |
| Mo | 8.5-10 | N/A | N/A | N/A | N/A | 15-17 | N/A |
| V | N/A | N/A | N/A | N/A | N/A | ≤0.35 | N/A |
| W | N/A | N/A | N/A | N/A | N/A | 3.0-4.5 | N/A |
| Impurities | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| | | | | | | | |
Packaging & Shipping
Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
Our Services
1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safety, convenience, quick, and cheap mode of transportation for our customers.
