Tophet Nicr Alloy Electric Resistance Heating Wire NiCr8020

Name: Tophet Nicr Alloy Electric Resistance Heating Wire NiCr8020
Brand: TANKII
Price: 30 USD

Quality Tophet Nicr Alloy Electric Resistance Heating Wire NiCr8020 wholesale

Brand Name : TANKII

Model Number : Cr20Ni80

Certification : DIN, ASTM, JIS ROHS

Place of Origin : Jiangsu, China

MOQ : 10KG

Price : 30-80USD

Payment Terms : T/T, L/C, , Western Union

Supply Ability : 50 tons per month

Delivery Time : 5-10 work days

Packaging Details : spool ,coil, carton, wood box, or as clients' requirement

Grade : NiCr8020, Chromel A, Nikrothal 80, NCHW1,N8, Cronix 80, Alloy A, Stablohm 650, MWS-650

Application : furnace heating wire/household appliances

Elongation (≥ %) : 20

Resistance (μω.m) : 1.09

Powder or not : Not Powder

Ultimate strength (≥ mpa) : 750 N/mm²

Type : Nickel Chrome Alloy

Surface : Bright Annealed

Shape : wire

Material : Nichrome

Condition : soft annealed

Standard : ASTM B162, GB/1234 2012, GB/T 2054-2013, ASTM ASME, ASME SB162

Density : 8.4

Feature : high temperature strength

Contact Now

Electric Resistance Heating Alloy NiCr8020 Wire Tophet A Wire

Resistance heating wire includes pure nickel, chromel alloy, Fe-Cr-Al alloy and copper nickel alloy. Resistance heating wire is produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc. It is widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor.

Heating nickel chrome alloy /electric heating element resistance alloy/nichrome alloy wire/ni cr alloy/ ni-cr alloy/nickel chrome alloy/electrothermal alloy/electric heating alloy/Electric resistance alloy
Advantages: deformation ability, thermal stability,mechanical character, shockproof ability in thermal state and anti-oxidization.
The nichrome wire is widely used for making heating element like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor.

Grade:Chromel A, Nichrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resisthom 80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1

 Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.

 Packing detail:spool,coil,wooden case(as per client's requiryment).

 Visit our wedsite: www.tankii.com or email to us for more information.

Specification

Diameter(mm)	Tolerance(mm)	Diameter(mm)	Tolerance(mm)
0.03-0.05	±0.005	>0.50-1.00	±0.02
>0.05-0.10	±0.006	>1.00-3.00	±0.03
>0.10-0.20	±0.008	>3.00-6.00	±0.04
>0.20-0.30	±0.010	>6.00-8.00	±0.05
>0.30-0.50	±0.015	>8.00-12.0	±0.4

Alloy Type	Diameter (mm)	Resistivity (μΩm)(20°C)	Tensile Strength (N/mm²)	Elongation(%)	Bending Times	Max.Continuous Service Temperature(°C)	Working Life (hours)
Cr20Ni80	<0.50	1.09±0.05	850-950	>20	>9	1200	>20000
	0.50-3.0	1.13±0.05	850-950	>20	>9	1200	>20000
	>3.0	1.14±0.05	850-950	>20	>9	1200	>20000
Cr30Ni70	<0.50	1.18±0.05	850-950	>20	>9	1250	>20000
Cr30Ni70	≥0.50	1.20±0.05	850-950	>20	>9	1250	>20000
Cr15Ni60	<0.50	1.12±0.05	850-950	>20	>9	1125	>20000
Cr15Ni60	≥0.50	1.15±0.05	850-950	>20	>9	1125	>20000
Cr20Ni35	<0.50	1.04±0.05	850-950	>20	>9	1100	>18000
Cr20Ni35	≥0.50	1.06±0.05	850-950	>20	>9	1100	>18000
1Cr13Al4	0.03-12.0	1.25±0.08	588-735	>16	>6	950	>10000
0Cr15Al5		1.25±0.08	588-735	>16	>6	1000	>10000
0Cr25Al5		1.42±0.07	634-784	>12	>5	1300	>8000
0Cr23Al5		1.35±0.06	634-784	>12	>5	1250	>8000
0Cr21Al6		1.42±0.07	634-784	>12	>5	1300	>8000
1Cr20Al3		1.23±0.06	634-784	>12	>5	1100	>8000
0Cr21Al6Nb		1.45±0.07	634-784	>12	>5	1350	>8000
0Cr27Al7Mo2	0.03-12.0	1.53±0.07	686-784	>12	>5	1400	>8000

Tophet Nicr Alloy Electric Resistance Heating Wire NiCr8020

Product Tags:

Resistance Tophet A Wire

Nicr Alloy Resistance Heating Wire

Tophet Resistance Heating Wire

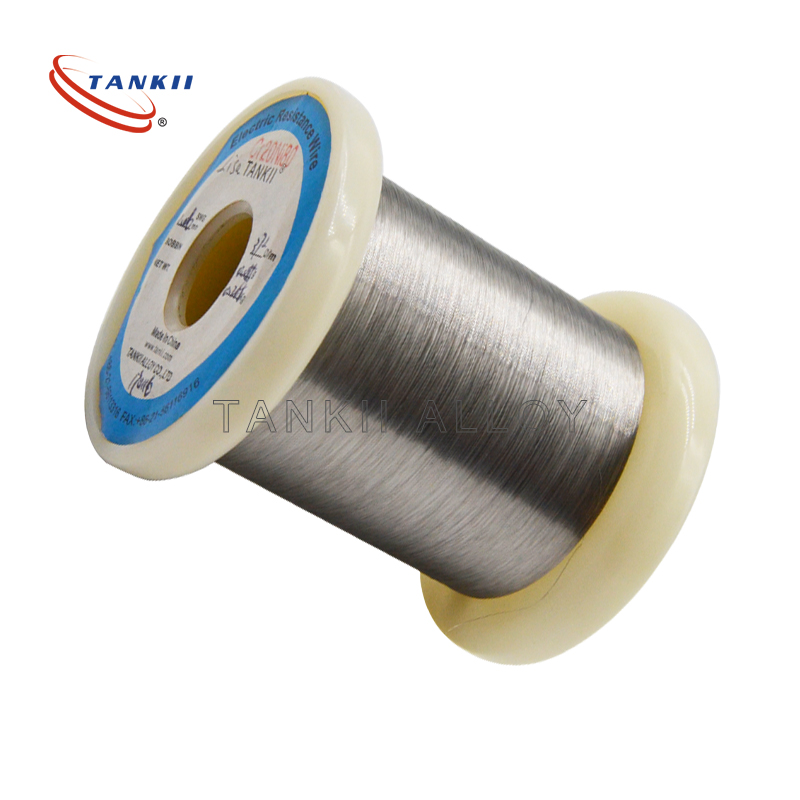

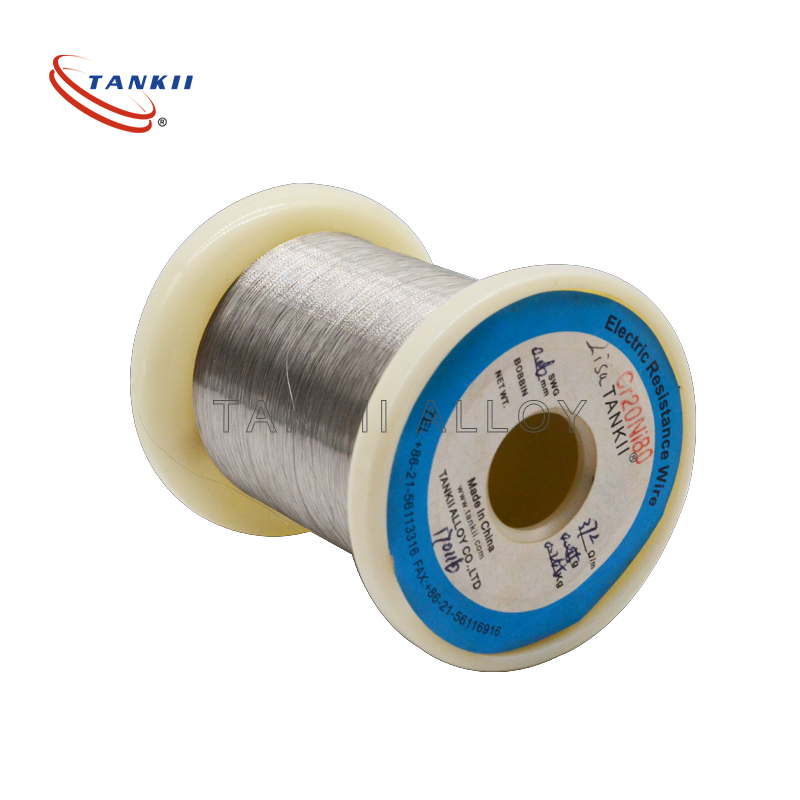

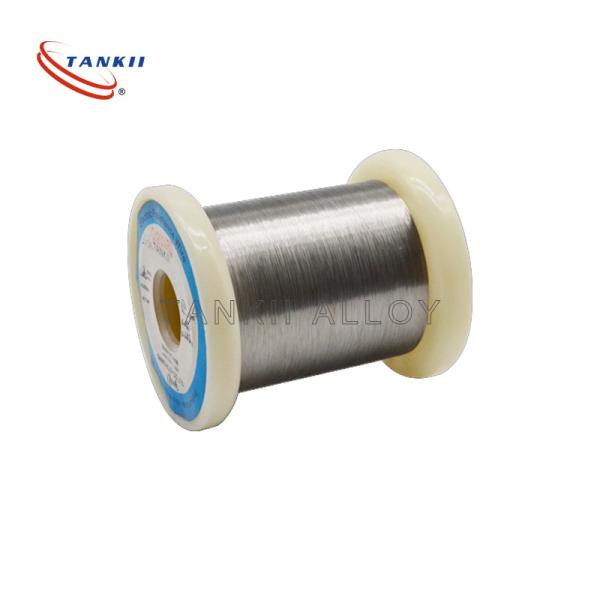

Tophet Nicr Alloy Electric Resistance Heating Wire NiCr8020 Images
