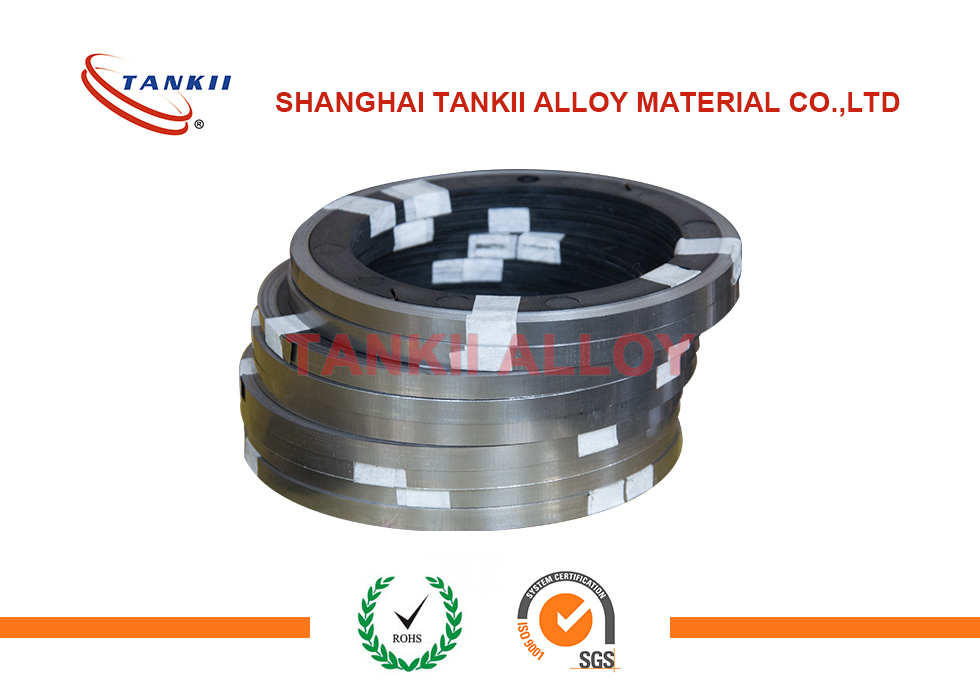

Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade

  • 1
  • 2

Brand Name : Tankii

Model Number : NCHW - 1 (NICr8020)

Certification : ISO9001,SGS

Place of Origin : China Mainland

MOQ : 20kg

Payment Terms : T/T, Paypal, Western Union, MoneyGram,

Supply Ability : 1000Ton per year

Delivery Time : About 10-15 days after getting the payment

Packaging Details : Standard exoprt package

Surface : Bright

Diameter : 0.04mm~7.0mm

Leading time : 5~20 days as per the order qty

item : Nicr AA / Resistohm 80 / Stablohm 650 Strip Used For Dymamic Braking Resistors

Ribbons : 0.05*0.2-2.0*6.0mm

Grade : NiCr8020

Contact Now

NiCr8020 Nickel chrome flat electric heating resistance wire

Nickel chrome flat electric heating resistance wire NiCr8020

Product Description
Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.

Chemical Content(%)

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -

Mechanical Properties of nichrome wire

Max Continuous Service Temperature: 1200ºC
Resisivity 20ºC: 1.09 ohm mm2/m
Density: 8.4 g/cm3
Thermal Conductivity: 60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion: 18 α×10-6/ºC
Melting Point: 1400ºC
Elongation: Min 20%
Micrographic Structure: Austenite
Magnetic Property: nonmagnetic

Temperature Factors Of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
1 1.006 1.012 1.018 1.025 1.026 1.018
700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1.01 1.008 1.01 1.014 1.021 1.025 -

Regular size of Nickel alloy wire :

We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

Bright and white wire--0.025mm~3mm

Pickling wire:1.8mm~10mm

Oxidized wire:0.6mm~10mm

Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm



Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade

Mine trolley brake resistor:
Nickel Chrome Flat Electric Heating Resistance Wire NiCr8020 Grade
